Pro Line Fusion
By implementing the industry’s first touch-control primary flight displays, you are able to boost your aircraft’s efficiency and predictability using advanced situational awareness capabilities and unsurpassed connectivity.

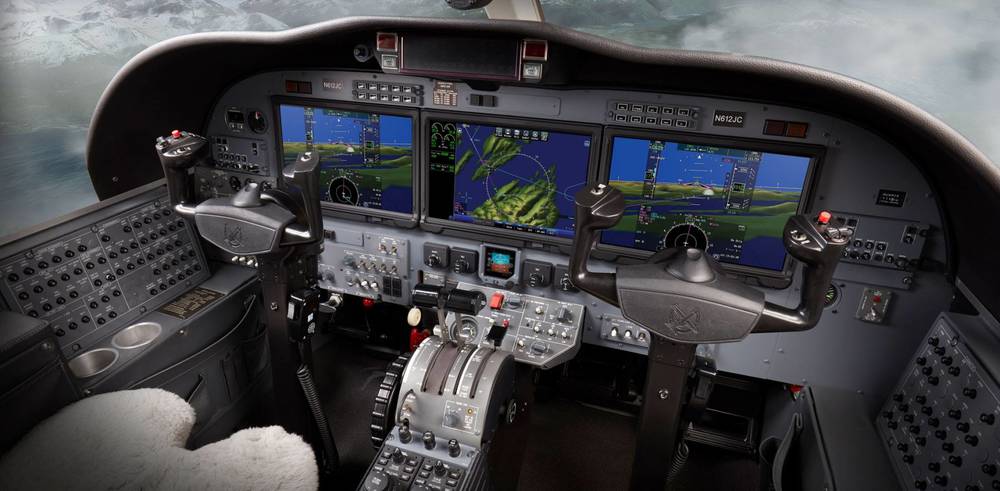

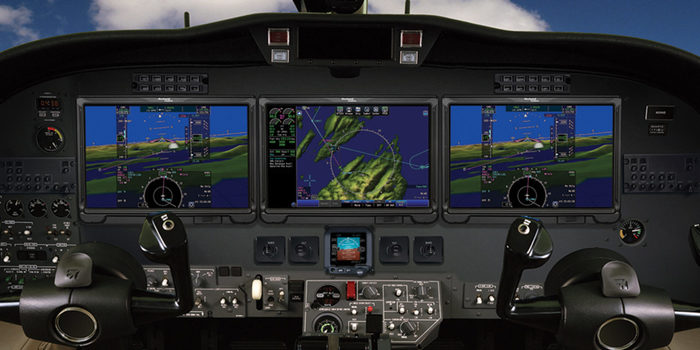

Upgrade to enjoy an elevated flight experience every time you take to the sky. This modernized center pedestal gives pilots the flexibility of multiple input methods, allowing for heads-up flying and improved ease of use. With new features such as high-resolution synthetic vision technology (SVT™), you will quickly recognize why Pro Line Fusion® is regarded as a powerhouse avionics system.
Request Information
Product Features

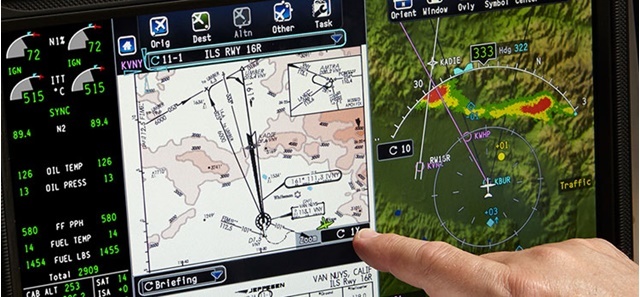

- Intuitive graphical touch-screen flight planning

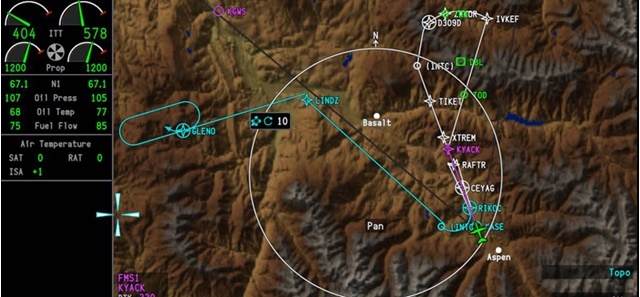

- High-resolution Synthetic Vision System (SVS) with patented airport dome graphics
- Convenient presets to reconfigure all three displays with a single touch
- Full multi-sensor flight management system
- Integrated touch-screen checklists
- Open and scalable architecture for future upgrades and mandates
- NextGen and precision GPS capabilities: DO-260B compliant ADS-B, SBAS-capable GNSS, localizer performance with vertical guidance (LPV) approaches, radius-to-fix (RF) legs and more
Prerequisites
- The aircraft must be equipped with ADS-B Out using Collins Transponders and Collins WAAS capable GPS
- TCAS II must have TTR-4000 PN: 822-1294-032
- Terrain Awareness and Warning System (TAWS) - The STC supports aircraft equipped with a Honeywell MK VIII, MK V, or ACSS Landmark 8000
- DCU-3001 must be PN 822-1483-250
- WXWR-1000 must be PN: 822-2031-002
- RIU must be PN: 822-1864
- Additional charges may apply to modify components to meet their prerequisites
- The Pro Line Fusion installation is currently not compatible with VHF SELCAL
- If an aircraft is equipped with GPS 500, it cannot be retained due to panel space
- If an FDR is installed and required for operational approval, prior to modification, an analysis is required to validate avionics interface to flight data acquisition system is not compromised.
Available Models
Limitless Solutions
From comfort and versatility to the latest in avionics modifications, the upgrade process is your own. Just like your aircraft. Now, it's ready for the next challenge. Let us show you what your aircraft can become.
