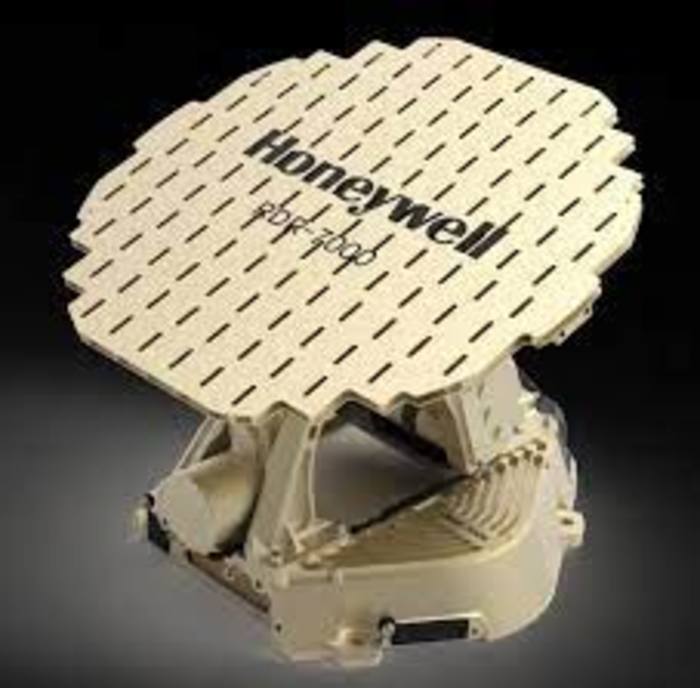

Honeywell RDR-7000 WX Radar Replacement for Primus 660 and 880 Radars

The RDR-7000 IntuVue Weather Radar offers the following benefits and features:

• Automatic weather detection modes
• 3-D Volumetric Scan Buffer
• Integral terrain database for ground clutter elimination
• Extended ground map mode
• Enhanced Turbulence detection (Optional)
• Hail and lightning detection (Optional)
• Improved hazardous weather and turbulence prediction
• Improved windshear prediction
• Nearly "drop-in" replacement to current installed unit
• On-Path/Off-Path weather with hazard symbology

Performance Benefits

• Minimize pilot manipulation/interaction
• Increased range performance and higher resolution with Honeywell's patented pulse compression technology
• Solid state gallium arsenide transmitter providing direct amplification
• Direct drive antenna provides greater pointing accuracy

Reduced Life Cycle Costs

• Reduced size, weight and power (over comparable radar) - 1 LRU package
• Elimination of magnetrons with use of solid state gallium arsenide transmitter
• Digital radio techniques eliminate tuning points providing improved repeatability, reliability and lower drift
• Elimination of gears in the antenna drive system
• On-board high-speed Ethernet software data loading
• Enhanced BITE and fault logging by flight leg
• Removable compact flash memory for software loading
• Greatly increased reliability
• No forced air cooling required
